MONOBLOCK VALVE 90L GMC

Information Form.


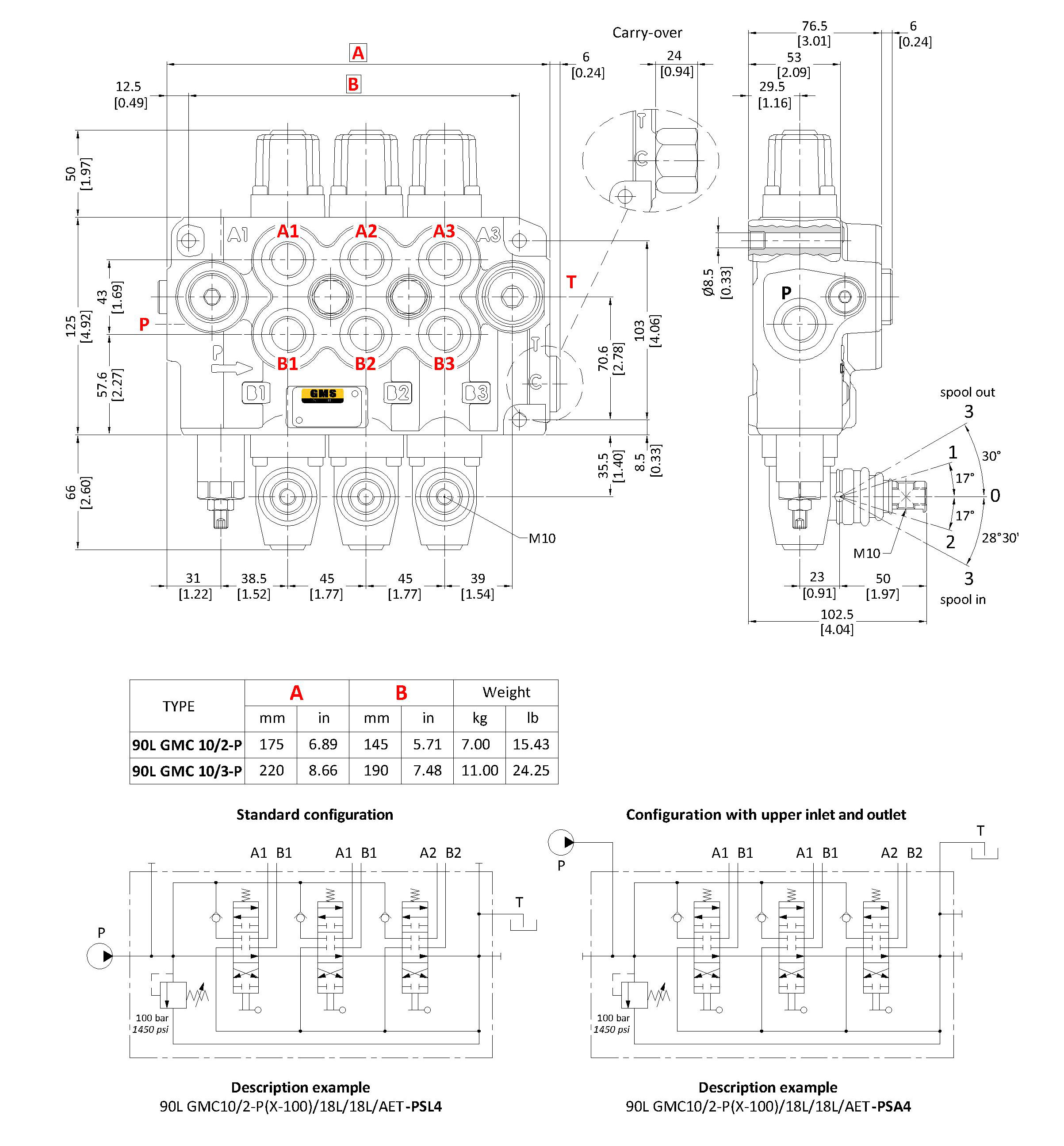

APPLICATION AREAS

This 90L GMC directional control valve group is commonly used for wood splitters, tractors, farm equipments, small fishing vessels, earth moving machines, lifting equipments, aerial platforms, boom cranes.


TECHNICAL INFORMATION


WORKING CONDITIONS


This catalogue shows technical specifications and diagrams measured through mineral oil of 46 mm2/s – 46cSt viscosity at 40°C - 104°F temperature.

Nominal flow rating



90 l/min.



Max. flow



100 l



Operating pressure (max.)



315 bar

4600 psi

Max. back pressure

on outlet port T

20 bar

290 psi

Internal leakage A(B)®T

Dp=100 bar – 1450psi with fluid and valve at 40°C

3cm3/min.

0.18 in3/min.

Hydraulic fluid



Mineral base oil



Fluid temperature

with NBR seals

from - 20° to 80°C



with FPM (VITON) seals

from - 20° to 100°C



Viscosity

operating range

from 15 to 75 mm2/s

from 15 to 75 cSt

Min.

12 mm2/s

12 cSt

Max.

400 mm2/s

400 cSt

Max. level of contamination



19/16 – ISO 4406




STANDARD THREADS


REFERENCE STANDARD





BSP

UN-UNF

METRIC

THREAD

ACCORDING TO



ISO 228/1

ISO 263

ISO 262



BS 2779

ANSI B1.1 unified



CAVITY

ACCORDING TO

ISO

1179

11926

9974-1

SAE



J1926



DIN

3852-2

shape X o Y



3852-1

shape X o Y


PORTS THREAD

MAIN PORTS

BSP

OPTIONAL

UN-UNF

METRIC

Inlet P and carry-over C

G 1/2

G 3/4

7/8 - 14 (SAE 10)

M18x1,5

Ports A and B

G 1/2

G 3/4

3/4 – 16 (SAE 8)

M18x1,5

Outlet T

G 3/4

-

7/8 - 14 (SAE 10)

M22x1,5

CONTROL PILOT PORTS

Pneumatics

G 1/8



-

-

Hydraulics

G 1/4



-

-
